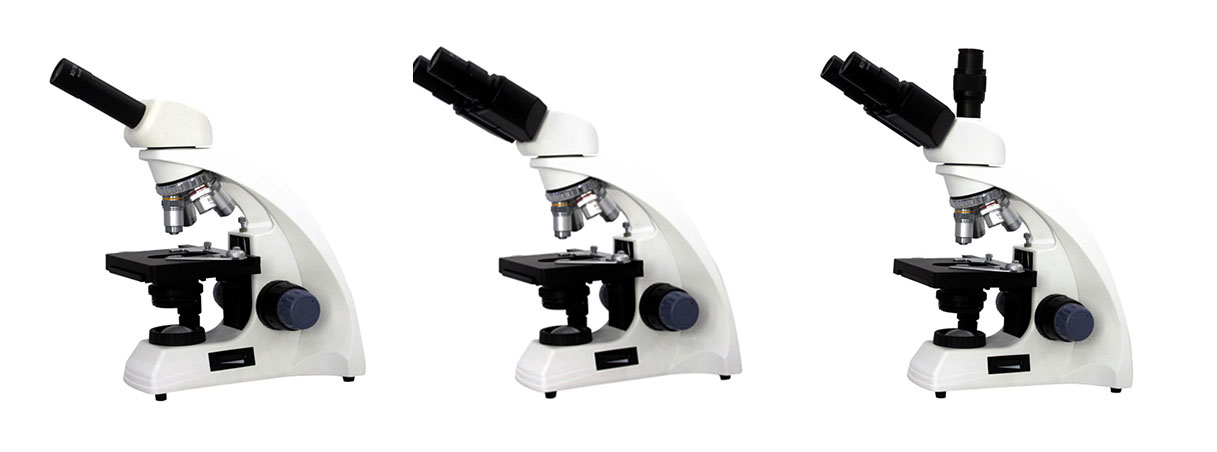

XSP330 Series Biological Microscope

Items

XSP330M

XSP330B

XSP330T

Finite Optical System

●

●

●

Monocular Head,  Inclined at 30º，

360ºRotatable

●

Seidentopf Binocular Head, Inclined at 30º，360ºRotatable

Interpupilary distance: 55-75mm

●

Seidentopf Trinocular Head，Inclined at 30º，360ºRotatable

Interpupilary distance: 55-75mm

Splitting ratio: 30:70

●

Wide Field Eyepiece WF10X/18mm

●

●

●

Wide Field Eyepiece WF16X/13mm

○

○

○

Wide Field Eyepiece WF20X/11mm

○

○

○

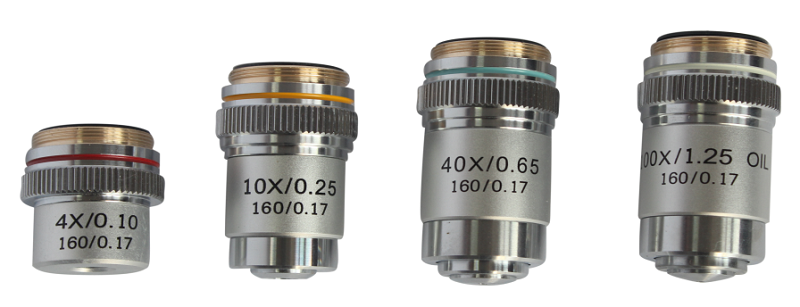

Achromatic

Objectives

4X

●

●

●

10X

●

●

●

40X(S)

●

●

●

100X(Oil,S)

●

●

●

Plan Achromatic

Objectives

4X

○

○

○

10X

○

○

○

40X (S)

○

○

○

100X(S)(Oil)

○

○

○

Nosepiece

Quadruple

●

●

●

Abbe Condenser with Diaphragm，Filter

N.A.1.25

●

●

●

Coaxial Coarse and Fine Focusing Adjustment

Fine Division:0.002mm, Coarse Stroke: 36mm

●

●

●

Mechanical Stage

Double Layer Mechanical Stage 115x125mm

Travel: 30X70mm

●

●

●

Illumination

3W/LED,  Rechargeable,

Bright Adjustable

●

●

●

C-mount

Electric Eyepiece Adaptor

○

1X C-mount

○

0.5X C-mount

○
