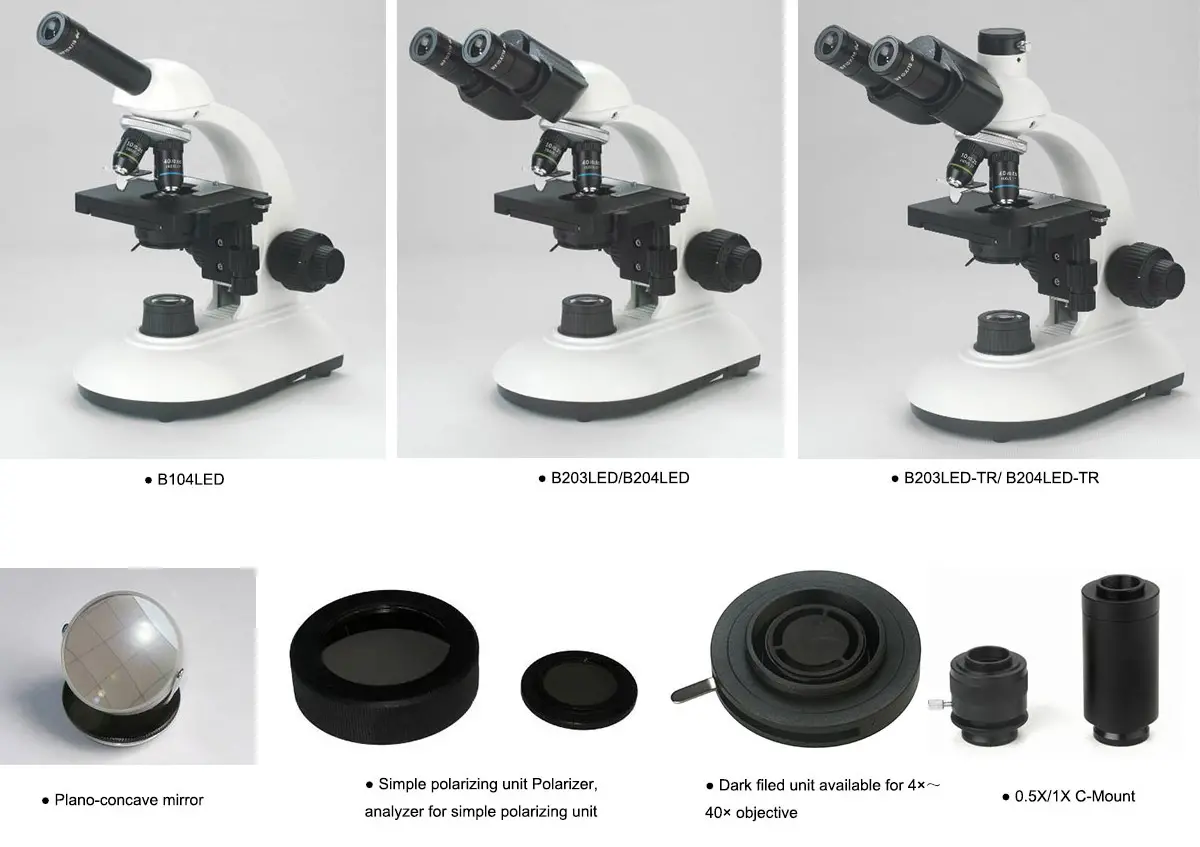

B Series Biological Microscope

Items

Specification

B104LED

B203LED

B204LED

Eyepiece

WF 10×-18 mm

●

●●

●●

WF 10×-18 mm(adjustable, 0.1 mm)

○

○

○

Achromatic

Objective

4×

●

●

10×

●

●

40×(S)

●

●

100×/1.25 (Oil) (S)

●

●

20×

○

○

60× (S)

○

○

Plan Objective

4×

●

10×

●

40×/0.65 (S)

●

100×/1.25 (Oil) (S)

●

Monocular Head

Inclined 30°, Rotatable 360°

●

Butterfly

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm

●

●

Butterfly

Seidentopf

Trinocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm,

Light Distribution 20:80

○

○

○

Nosepiece

Quadplex

●

●

●

Focusing Knobs

Coaxial Coarse and Fine Focusing Knobs

Travel Range: 22mm,  Scale: 2µm

●

●

●

Mechanical Stage

Stage Size:125mm×115mm,

Travel: 35mm×75mm

●

●

●

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

●

●

●

Dark Field Ring

Available For 4×-40× Objective

○

○

○

Polarizing Attachment

Analyzer / Polarizer

○

○

○

Mirror

Plano-concave mirror

○

○

○

C-mount

1×/ 0.5×（Focus Adjustable）

○

○

Base

3WLED Illumination Systems

●

●

●

3WLED Illumination Systems

（rechargeable）

○

○

○

12V 20W Halogen Lamp,

Wide Voltage: 100V-240V

○

○

○
