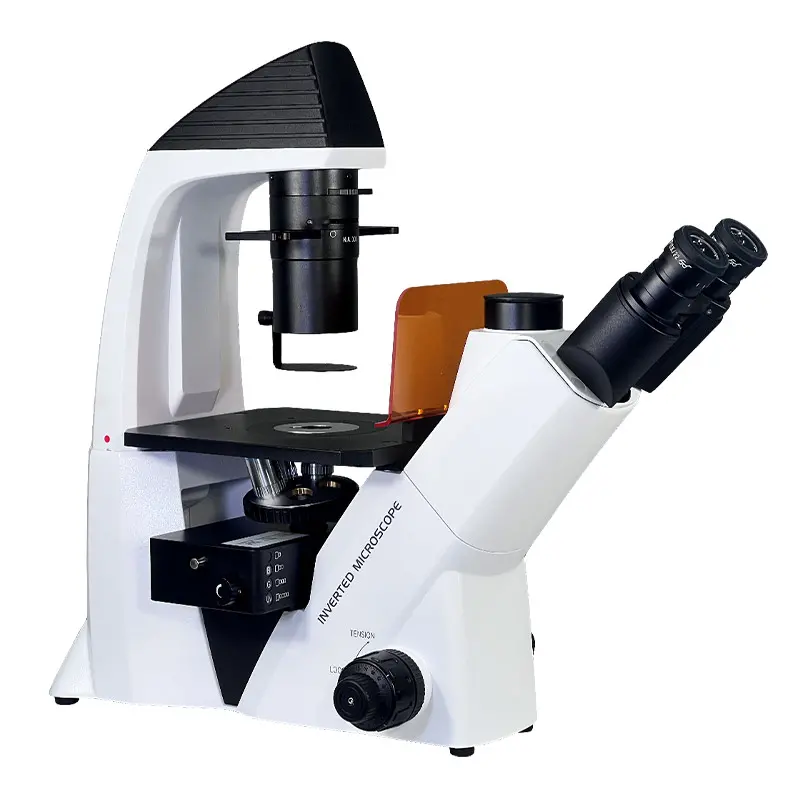

BDS400 Inverted Biological Microscope
BDS400 Inverted Biological Microscope
Same Objective for Both Bright Field & Phase Contrast Observation
Not Necessary to Change Different Objective
|
BDS400 Inverted Biological Microscope |
|
BDS400 Inverted Fluorescence Microscope |
● Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.
● Light distribution (both): 100 : 0 (100% for eyepiece);
80 : 20 (80% for trinocular head and 20% for eyepiece)
Culture Dish Holder
 |  |
| LWD Infinity Plan Objectives | LWD Infinity Plan Phase Contrast Objectives |
| Objectives | N.A. | Working distance(mm) | |

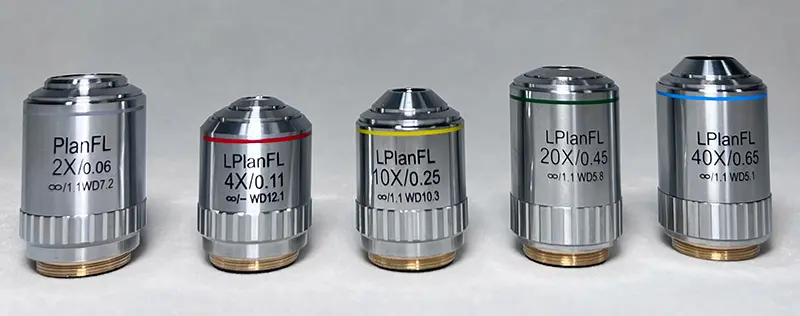

| LWD Infinity Plan Objectives | L Plan FL 4X | 0.11 | 12.1 |
| L Plan FL 10X | 0.25 | 10.3 | |
| L Plan FL 20X | 0.45 | 5.8 | |
| L Plan FL 40X | 0.65 | 5.1 | |

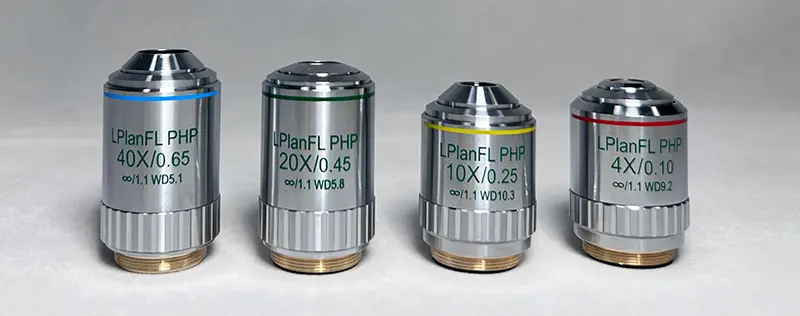

| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X (Both for Bright Field & Phase Contrast) | 0.10 | 9.2 |
| L Plan FL PHP 10X (Both for Bright Field & Phase Contrast) | 0.25 | 10.3 | |
| L Plan FL PHP 20X (Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
| L Plan FL PHP 40X (Both for Bright Field & Phase Contrast) | 0.65 | 5.1 |
BDS400 Inverted Biological Microscope Size(mm)
BDS400 Inverted Fluorescence Microscope Size(mm)
BDS400 Inverted Biological Microscope General Layout Diagram
BDS400 Inverted Biological Microscope Outfits
| Item | Specification | Outfits | |
| Eyepiece | WF10×／22mm | ●● | |
| LWD Infinity Plan Objectives | L Plan FL 4X／0.11 | W.D.=12.1mm | ○ |
| L Plan FL 10X／0.25 | W.D.=10.3mm | ○ | |
| L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
| L Plan FL 40X／0.65 | W.D.=5.1mm | ○ | |
| LWD Infinity Plan Phase Contrast Objectives
| L Plan FL PHP 4X／0.10 (Both for Bright Field & Phase Contrast) | W.D.=9.2mm | ○ |
| L Plan FL PHP 10X／0.25 (Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ● | |
| L Plan FL PHP 20X／0.45 (Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
| L Plan FL PHP 40X／0.65 (Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ● | |
| Annular Spot | 10×/20×/ 40× | ● | |
| 4× | ○ | ||
| Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0（100% for eyepiece） 80:20 (80% for trinocular head, and 20% for eyepiece) | ● | |
| Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ○ | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Stage size: X×Y: 210×241mm， Round slide size：Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y：128×80mm.) | ● | |
| Culture Dish Holder | 65mm | ○ | |
| 54mm | ● | ||
| 35mm | ○ | ||
| blood cell counter | ○ | ||
| Glass Holder | ○ | ||
| Universal Holder | ○ | ||
| Condenser | Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser). | ● | |
| Koehler Illumination | 6V/30W （input voltage：100V～240V） | ● | |
| 5WLED (input voltage：100V～240V) | ○ | ||
| Filter | Blue | ● | |
| Green | ● | ||
| Amber /Grey | ○ | ||
| C-mount | 1 X /0.5X /0.75X C-Mount (focus adjustable) | ○ | |
| Epi Fluorescence Illumination | Epi fluorescence media unit , field diaphragm，center adjustable. | ○ | |
| 100W mercury lamp ,5WLED(input voltage:100V～240V) | ○ | ||
| B, G, V, UV fluorescence filters can be chosen | ○ | ||
| Infinity Fluorescence objective | L Plan Fluor 10X/0.3 W.D.=10mm | ○ | |
| L Plan Fluor 20X/0.45 W.D.=6.6mm | ○ | ||
| L Plan Fluor 40X/0.6 W.D.=3.5mm | ○ | ||
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
