● Excellent OTICS infinity optical system, outstanding resolution and definition.
● Original integrated stand for excellent stability.
● Unique aspheric illumination system, provide bright and comfortable lighting.
● Various colorful matching looking can provide lively environment and happy mood.
● Various accessories for upgrading.
● Back handle and observing hole convenient for carry and operation.
● Alternative color for main body.
 |  |
| ● SMART-FL LED Fluorescence Microscope | ● SMART-FL Fluorescence Microscope |
● Wire winding device convenient for carry and storage (optional)
● Phase contrast unit, Independent phase contrast unit (apply to infinity optical system)
● Polarizer, analyzer for simple polarizing unit.
● Dry Dark Field Condenser
● Mirror

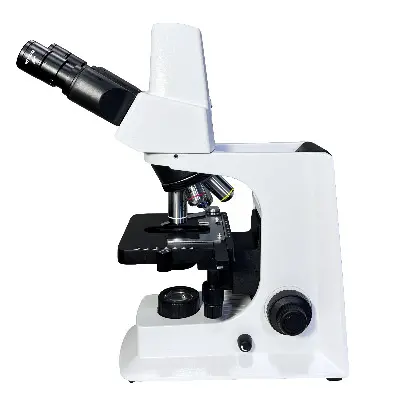

SMART Series Biological Microscope Outfits
| Items | Specification | SMART-1 | SMART-2 | SMART-3 | SMART-4 | ||
| Eyepiece | WF 10X-18mm | ●● |
|
|
| ||
| WF 10X- 20mm |
| ●● | ●● | ●● | |||
| Finity Achromatic Objective | 4X/0.10 | WD=18.6mm | ● |
|
|
| |
| 10X/0.25 | WD=6.5mm | ● |
|
|
| ||
| 40X(S)/0.65 | WD=0.47mm | ● |
|
|
| ||
| 100X/1.25 (Oil) (S) /1.25 | WD=0.07mm | ● |
|
|
| ||
| Finity Plan Achromatic Objective | Plan 4X/0.10 | WD=14.5mm |
| ● |
|
| |
| Plan 10X/0.25 | WD=5.65mm |
| ● |
|
| ||
| Plan 40X/0.65 (S)/0.65 | WD=0.85mm |
| ● |
|
| ||
| Plan 100X/1.25 (Oil) (S) | WD=0.07mm |
| ● |
|
| ||
| Infinity Achromatic Objectives | E-Plan4X/0.10 | WD=12.1mm |
|
| ● |
| |
| E-Plan10X/0.25 | WD=4.14mm |
|
| ● |
| ||
| E-Plan40X (S)/0.66 | WD=0.58mm |
|
| ● |
| ||
| E-Plan100X (Oil) (S)/1.25 | WD=0.19mm |
|
| ● |
| ||
| InfinityPlan Achromatic Objectives | Plan 4X/0.11 | WD=12.1mm |
|
|
| ● | |
| Plan 10X/0.25 | WD=10.00mm |
|
|
| ● | ||
| Plan 40X (S)/0.65 | WD=0.65mm |
|
|
| ● | ||
| Plan 100X (Oil) (S)/1.25 | WD=0.24mm |
|
|
| ● | ||
| Plan 20X/0.45 | WD=3.33mm |
|
| ○ | ○ | ||
| Plan 60X (S)/0.80 | WD=0.33mm |
|
| ○ | ○ | ||
| Butterfly Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | ● | ● | ● | ● | ||
| Butterfly Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 | ○ | ○ | ○ | ○ | ||
| Nosepiece | Quadplex | ● | ● | ● | ● | ||
| Quintuple | ○ | ○ | ○ | ○ | |||
| Mechanical Stage | Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder | ● | ● | ● | ● | ||
| Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, | ○ | ○ | ○ | ○ | |||
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● | ● | ● | ||
| Illumination | 3W-LED Illumination Systems（DC input） | ● | ● | ● | ● | ||
| 12V/20W Halogen Lamp | ○ | ○ | ○ | ○ | |||
| 12V/30W Halogen Lamp | ○ | ○ | ○ | ○ | |||
| Field Diaphragm |
| ○ | ○ | ○ | ○ | ||
| Dark Field Condenser | Dry, apply to 4X - 40X objective |
|
| ○ | ○ | ||
| Polarizing Attachment | Analyzer/Polarizer |
|
| ○ | ○ | ||
| Independent phase contrast unit | 10X /20X /40X /100X |
|
| ○ | ○ | ||
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. |
|
| ○ | ○ | ||
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. |
|
| ○ | ○ | |||
| Filter(Φ45mm) | Blue /Green /Yellow/Grey | ○ | ○ | ○ | ○ | ||
| C-Mount | 1X/ 0.35X/0.5X/0.75X （Focus adjustable） | ○ | ○ | ○ | ○ | ||
| Mirror |
| ○ | ○ | ○ | ○ | ||
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 390mm×280mm×450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
● Dustproof, moisture-proof, built-in chip.
● Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.
● Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.
● USB2.0 connection without external power supply.
● Available for WINDOWS system.
| Items | Specification | SMART-e500 |
| Eyepiece | WF 10X-20mm | ●● |
| Infinity EPlan Objective | 4X | ● |
| 10X | ● | |
| 40X/0.66 (S) | ● | |
| 100X/1.25 (Oil) (S) | ● | |
| Seidentopf Binocular Head | Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm | ● |
| Nosepiece | Quadplex | ● |
| Mechanical Stage | Stage Size: 145mm×140mm | ● |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● |
| Illumination | LED Illumination Systems | ● |
| 12V/20W Halogen Lamp | ○ | |
| 12V/30W Halogen Lamp | ○ | |
| Image Systems | 5 MP Pixel |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 570mm×275mm×450mm Gross Weight: 8 kgs Net Weight: 7 kgs
●SMART Biological Microscope Size(mm)
● SMART-FL Fluorescence Microscope Size(mm)
● SMART-E320/500 Digital Microscope Size(mm)
