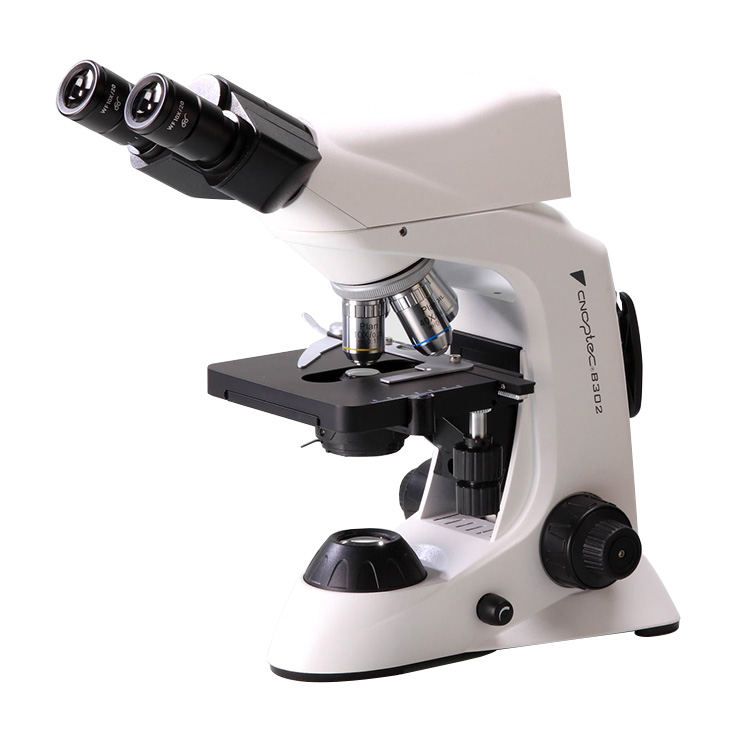

B302E500 Digital Microscope

High resolution and perfect definition from infinity correct optical system
100X water objective instead of 100X oil objective, more be convenient for using

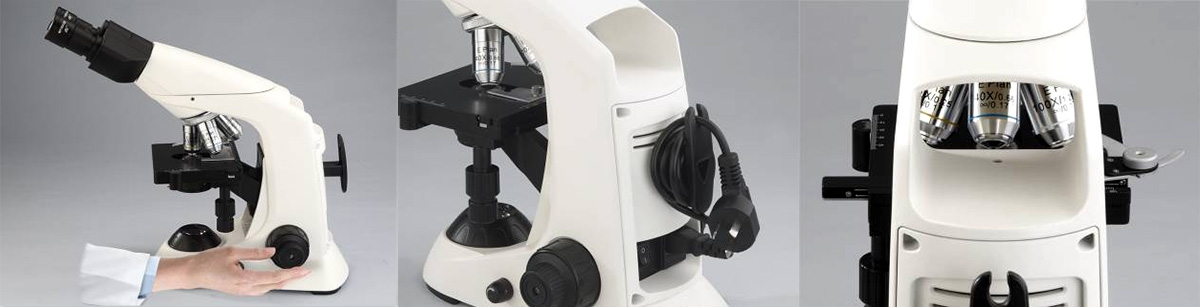

Low position operation, convenientfor long-term using
New wound device for cable, easy to move and keeping
The changing of objectives can be watched by back side through the back watching window

100× Water objective

Simple polarizing unit

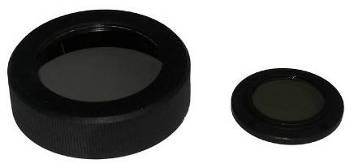

Polarizer, analyzer for simple polarizing unit

Dark filed unit available

for 4×～ 40× objective

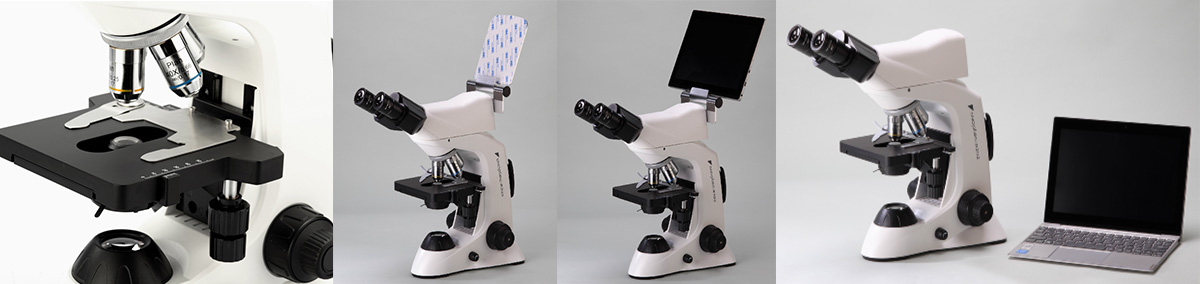

Rackless(Integrated) stage	B302E500 Digital Microscope

Items	Specification	B302E500
Main Body		●
Eyepiece	WF10X/20mm (High eyepoint)	●●
Infinity Objective	EPLAN 4X/0.10	○
	EPLAN 10X/0.25	○
	EPLAN 40X/0.65(S)	○
	EPLAN 100X/1.25(S，Oil)	○
	PLAN 4X/0.10	●
	PLAN 10X/0.25	●
	PLAN 20X/0.40(S)	○
	PLAN 40X/0.66(S)	●
	PLAN 60X/0.80(S)	○
	PLAN 100X/1.25(S，Oil)	●
	PLAN 100X/1.15(S，Water)	○
Butterfly Head	5 MP Pixel Digital Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80	●
Nosepiece	Quadplex	●
Mechanical Stage	Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder	●
Mechanical Stage	Rackless(Integrated) stage, Size: 140×135mm,Travel Range: 75×35mm, Two-slide holder	○
Abbe Condenser	N.A.1.25, With iris Diaphragm	●
Coaxial Coarse and Fine Focusing Knobs	Coarse Focusing Travel Range: 25mm Fine Focusing Travel Range: 2µm/division	●
Aspheric Illumination	3W LED Illumination，Voltage: 100V-240V	●
Dark Field Unit	Dark Field Ring (Dry, N.A.0.9)	○
Polarizing Unit	Analyzer, Polarizer	○
Wire Winding Device		●

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Packing Size: 345mm×260mm×455mm Gross Weight: 6.7 kgs Net Weight: 5.3 kgs
