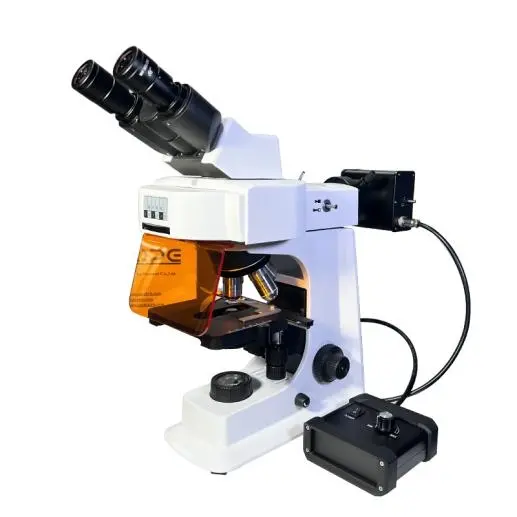

Smart-FL Fluorescence Microscope

Performance characteristics:

● Excellent OTICS infinity optical system, outstanding resolution and definition.

● Original integrated stand for excellent stability.

● Unique aspheric illumination system, provide bright and comfortable lighting.

● Various colorful matching looking can provide lively environment and happy mood.

● Various accessories for upgrading.

● Back handle and observing hole convenient for carry and operation.

● Alternative color for main body.

Items

Specification

SMART-4

Eyepiece

WF 10X-18mm

WF 10X- 20mm

●●

Infinity Plan

Objectives

4X

●

10X

●

40X (S)

●

100X (Oil) (S)

●

Plan 20X

○

Plan 60X (S)

○

Butterfly Seidentopf

Binocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm

●

Butterfly Seidentopf

Trinocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm,

Light Distribution 20:80

○

Nosepiece

Quadplex

●

Quintuple

○

Mechanical Stage

Stage Size: 145 mm×140mm

Travel: 76mmX52mm, Scale: 0.1mm

Coaxial Coarse and Fine Focusing Knobs

Travel Range: 26mm, Scale: 2um

Two Slide Holder

●

Rackless(Integrated) stage,

size: 140×135mm,Travel range: 75×35mm,
Two-slide holder

○

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

●

Illumination

3W-LED Illumination Systems

●

12V/20W Halogen Lamp

○

12V/30W Halogen Lamp

○

Field Diaphragm

○

Dark Field Condenser

Dry, apply to 4X - 40X objective

○

Polarizing Attachment

Analyzer/Polarizer

○

Independent

phase contrast unit

10X /20X /40X /100X

○

Fluorescence

Attachment

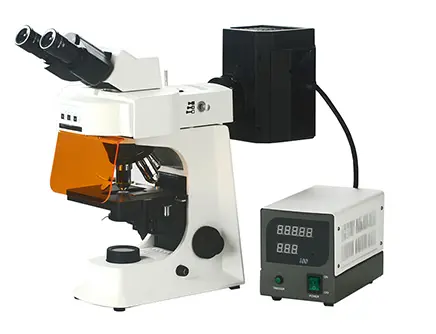

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

●

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.

○

Filter

Blue /Green /Yellow

○

C-Mount

1X/ 0.35X /0.5X /0.75X （Focus adjustable）

○

Mirror

○

Wire Winding Device

○
